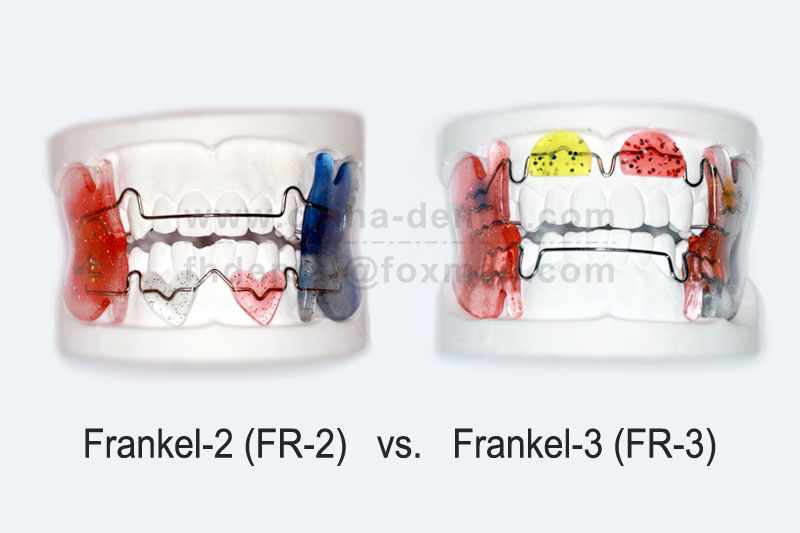

Functional Orthodontic Appliances: Frankel-2 (FR-2) vs. Frankel-3 (FR-3)
Posted: October 17 , 2025
The Frankel appliance is a removable functional appliance primarily used during the mixed dentition stage and the peak growth period in children. It guides jaw growth in a normal direction by altering the function of orofacial muscles and is mainly employed for correcting skeletal malocclusions.FR-2 and FR-3 are two of the most classic types. Their core difference lies in the fact that they treat completely opposite types of malocclusions. The fundamental distinctions are:

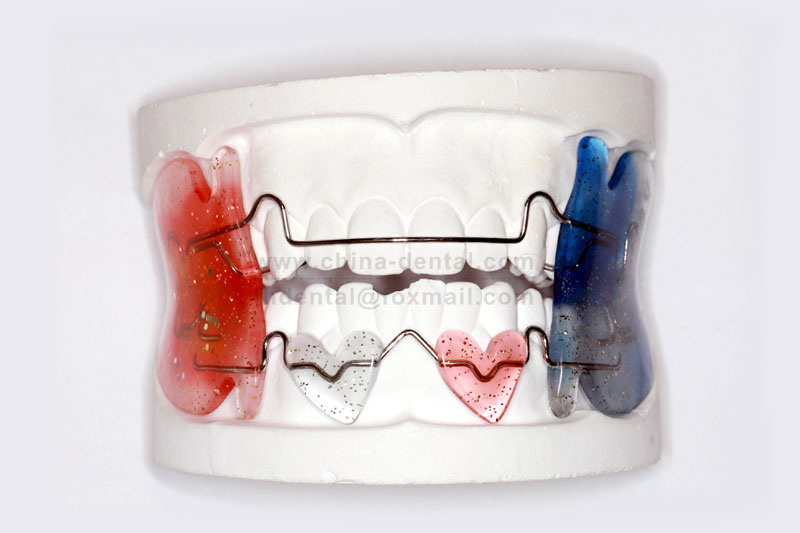

1. Frankel-2 (FR-2)(Orthodontic)
Frankel-2 (FR-2)(Orthodontic) Targeted Dental Problem:
·Primarily treats Angle's Class II, division 1 malocclusion, one of the most common clinical deformities.
·Typical Facial Profile: "Receding chin" appearance from the side view, protruding upper lip, and lips apart at rest.
·Occlusal Relationship: The lower dental arch is significantly behind the upper dental arch (commonly known as "overjet" or "buck teeth").
Working Principle:
·Lip Pads: Apply pressure to the alveolar bone in the upper anterior region, restraining its forward development.
·Mandibular Guide: Acts like a ramp. When the child wears the appliance, it guides the mandible to passively assume a more forward position. In this new position, the growth centers of the mandible are stimulated, promoting increased length of the lower jaw.
·Buccal Shields: Create space for the expansion of the posterior teeth.

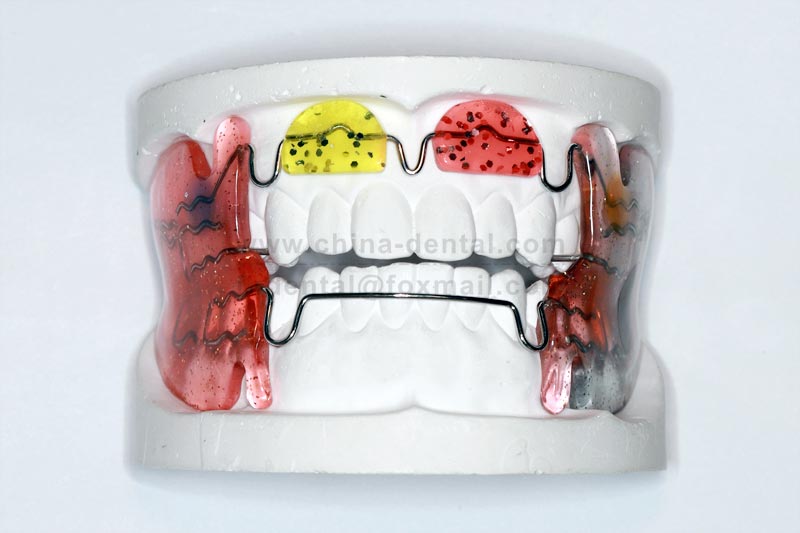

2. Frankel-3 (FR-3)(Orthodontic)
Frankel-3 (FR-3)(Orthodontic) Targeted Dental Problem:
·Specifically treats Angle's Class III malocclusion.
·Typical Facial Profile: Concave mid-face (area beside the nose and upper lip) from the side view, with a prominent chin, presenting a "concave profile."
·Occlusal Relationship: The lower dental arch is in front of the upper dental arch (commonly known as "underbite" or "anterior crossbite").
Working Principle:
·Upper Labial Archwire and Main Frame: Transmit orthopedic forces to the maxilla, stimulating its forward development.
·Lower Lip Pad: Counteracts the pressure exerted by the lower lip on the lower front teeth, thereby restraining the forward development of the lower incisors and the mandibular alveolar process.
·Posterior Bite Blocks: Disengage the posterior teeth, breaking the existing anterior crossbite lock. This allows the upper front teeth to move forward more easily, positioning themselves in front of the lower front teeth.
Conclusion
The choice between the Frankel FR-2 and Frankel FR-3 entirely depends on the patient's specific malocclusion type:
·Use FR-2 for mandibular retrognathia (receding lower jaw) or significant overjet problems.
·Use FR-3 for maxillary retrognathia (deficient upper jaw) or underbite problems.
Both appliances leverage the patient's own growth potential and are classic examples of "guidance of eruption." They must be used under the guidance of a professional orthodontist during the appropriate growth and development stage (typically ages 8-12). The successful application of such advanced techniques often relies on precise design and manufacturing. China dental design studios, China dental outsourcing services, and skilled China dental lab technicians play a crucial role in providing high-quality, custom-made functional appliances that meet these precise clinical requirements, supporting orthodontists worldwide in achieving optimal patient outcomes.
